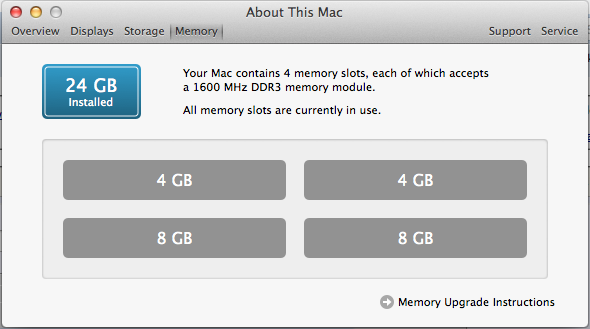

About This iMac

No, you do not have to use all 4 slots in your iMac. However, I haven't personally seen a 16GB RAM chip used in your model iMac and I've seen a lot of iMacs in my time, so others here may have to comment on whether they've actually tried it. Typically, to get to the maximum 32GB RAM, users have 4 x 8GB RAM chips installed (one in each slot). I have a late 2013 iMac with 16gb ram and upgraded 2.9 i5 processor that had a fusion drive. I added a new 2tb ssd last month. I also added a 500gb nvme ssd (or whatever the MacBook Pro equivalent drive is called) that I had spare from my late 2013 MacBook Pro as my iMac version has a slot for the nvme type ssd drive on the logic board.

The Apple iMac Intel Aluminum released September 2013 was another step in creativity in the world of computers. A number of more conventional features of a computer were absent – such a DVD drive slots and the FireWire ports that were traditional with the Apple iMac brand and new features appeared – such as the Thunderbolt port which allows for the passage of both visual and audio signal. The basic components of a computer such as the RAM were upgraded as this model had an 8 GB of 1600 MHz PC3-12800 DDR3 SDRAM which could be upgraded on purchase to a 16 GB RAM but not recommended for an upgrade after even though it is a possibility. The USB ports were 3.0 ports. It also had a powerful graphics processor included with its GeForce GT 750M graphics processor with 1 GB of dedicated GDDR5 memory with a built-in FaceTime HD camera. This computer still stands tall among competitors and will continue to stand tall for a long while regardless of the amount of development that happens in the computer world.

Storage

The device was built with 1 TB Serial ATA (6Gb/s) hard drive storage with a disk speed of 5400 RPM.

Screen Size and Resolution

The iMac Intel Aluminum version featured a 21.5 inch screen 1920×1080 LED-backlit 16:9 widescreen IPS display.

Inclusive Features

The iMac includes the following features and ports:

• A Power Adapter (100V-240V (50 Hz to 60 Hz, single phase))
• Standard AirPort Extreme (802.11n).
• Gigabit Ethernet
• A Mini DisplayPort allowing dual and mirroring operations with resolutions of up to 2560×1600.
• Stereo Speakers
• Thunderbolt Ports
• FaceTime HD webcam

Imac Late 2013 Memory Slots Slot

Processor & Graphics Processing Unit (GPU)

Imac Late 2013 Memory Slots Free

The iMac Intel Aluminum had the Mac OS X 10.8.4 (12E4022) operating system pre-installed on it. It was powered by Quad Core 2.9 GHz Intel “Core i5” I5-4570S (Ivy Bridge) processor with four independent processor cores on a single chip. Its graphics processor was the NVIDIA GeForce GT 750M graphics processor with 1 GB of dedicated GDDR5 memory.

Memory & Architecture

The device was built with a 6 MB on-chip level 3 cache with a 8 GB of 1600 MHz PC3-12800 DDR3 SDRAM. It’s designed was centered on a 64-Bit architecture.

Upgradability

Although the iMac Intel Aluminum came with 8 GB of RAM it could be upgraded up to 16 GB of RAM.

Imac Late 2013 Memory Slots Upgrade

The Operating System of the iMac Intel Aluminum can also be upgraded from its pre-installed Mac OS X 10.8.4 (12E4022) up to MacOS X 10.13. This iMac was also able to run Windows 7 (64-Bit) and more recently Windows 10 (64-Bit).

This iMac had the following dimensions of 45.0 cm, 52.8 cm, 17.5 cm and a weight of 12.5 lbs (5.68 kg).
